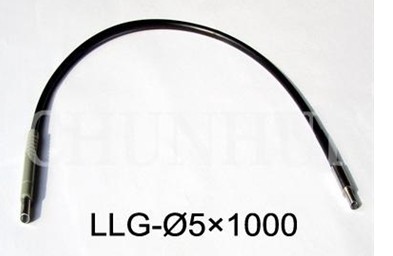

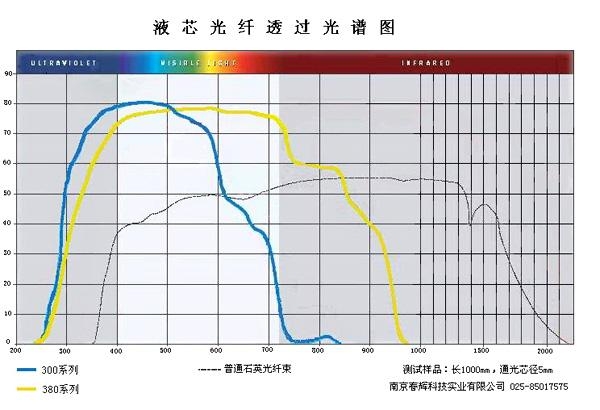

Liquid light guide is a light transmitting element of new structure, it consists of a liquid material as core and polymer materials as cladding, characterized by large core diameter, large numerical aperture, broad range and higher efficiency of transmission., especially in UV light, comparing with ordinary silica optical bundle, and particularly suits to the spectral transmission in the fields of medical treatment, ultraviolet curing, fluorescent detection, criminal investigation and scientific research., according the ingredient of core material, liquid light guide is divided by two series, one is 300 series that of the best efficient transmission is 300nm～600nm., another is 380 series that of the best efficient transmission is 300nm～800nm。

Performance of Liquid Light Guide：

Core Diameter   ( d0)(mm)	￠3			￠5		￠8	￠10
Min. Bending Radius   (mm)	40			60		100	150
Model (One Input /Multi-out put)	φ3/1-1	φ3/1-2	φ3/1-3	φ5/1-1	φ5/1-2	φ8/1-1	φ10/1-1
Numerical aperture  (NA)	≥0.5  2α≥60°
Transmission   %	≥80%（λ=365nm，L=1000mm）
Temperature of Existing	-10℃～40℃
Heat Resistance at End Face	＜250℃
Length	Customer designs are available

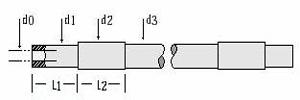

Dimension of standard output end fitting，customer designs are available）：

d0 (mm)	d1 (mm)	d2 (mm)	d3 (mm)	L1 (mm)	L2 (mm)
3	5	9	6	20	25
5	7	10	9	20	25
8	12	18	14	20	40
10	14	20	16	20	40
